Grid & Layout
At the heart of the Sunbird-Ed portal's design is a robust grid system and layout framework. These foundational elements play a pivotal role in organizing content and creating responsive designs that adapt seamlessly to various screen sizes and devices. For more information please refer to this link https://sunbird-ed.github.io/sunbird-style-guide/dist/#/gridlayout
Key Features:
Versatile Grid System: Flexible layout options for diverse content arrangements.
Consistent Design: Standardized framework for a unified visual identity.
Responsive Design: Dynamic content adaptation for all screen sizes.
Efficient Development: Streamlined workflow within a structured framework.

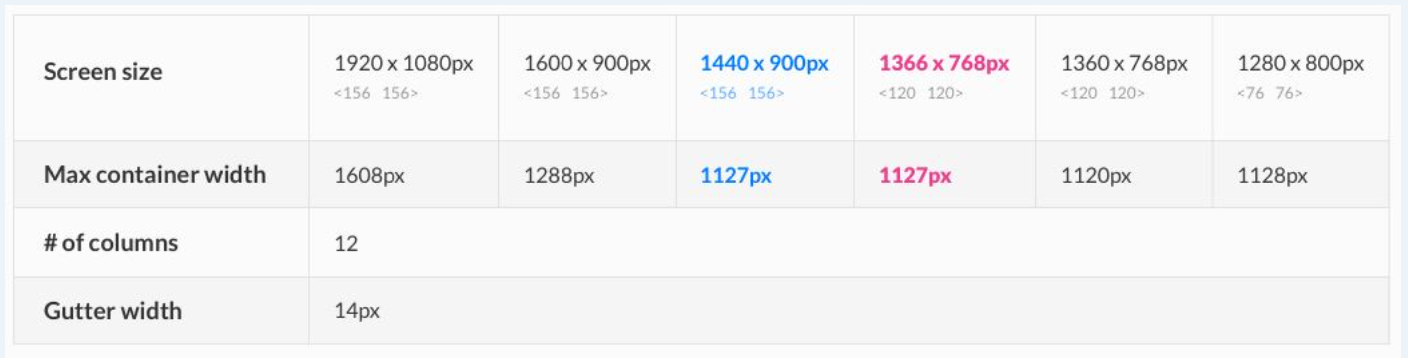

Grid Options: See how aspects of the grid system work across multiple devices with a handy table.

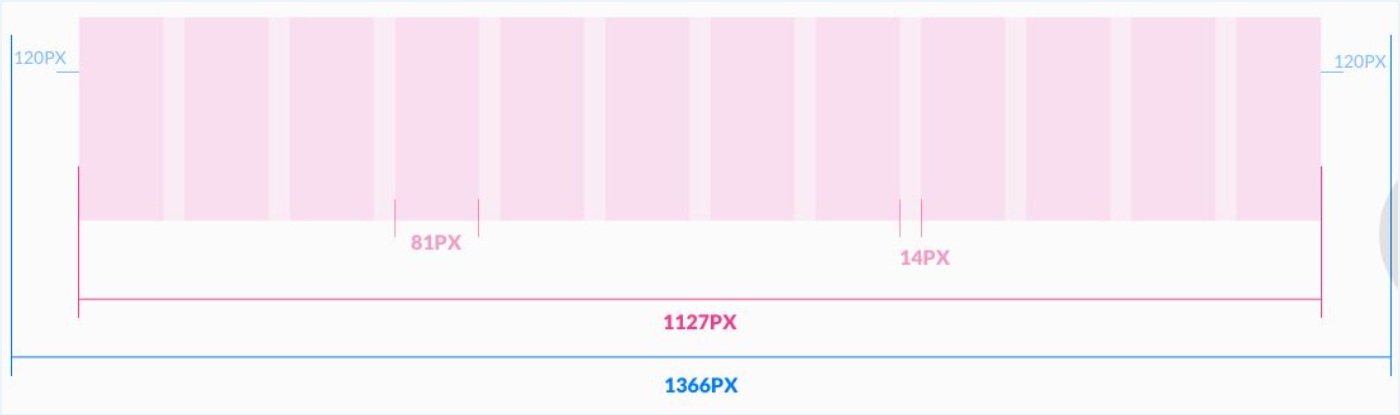

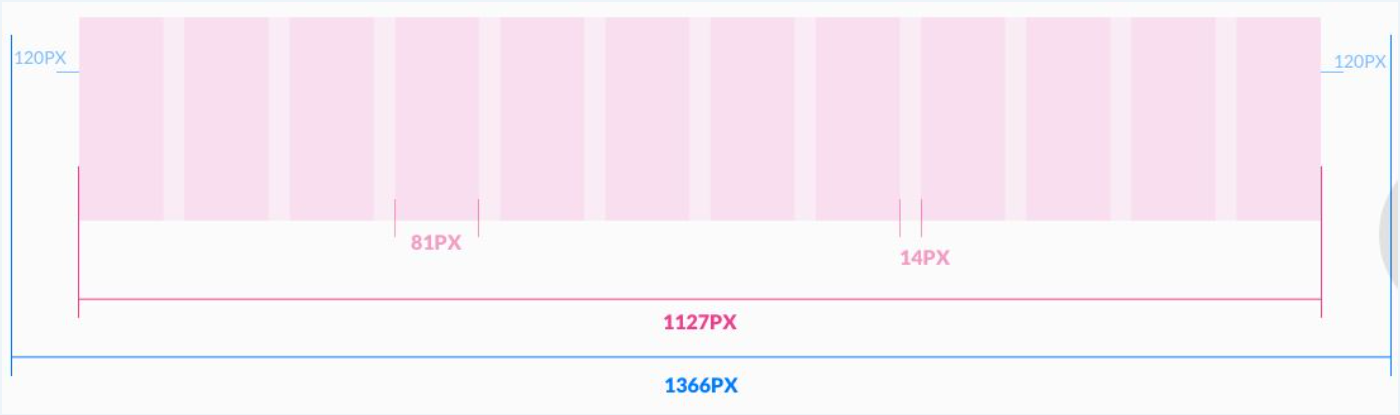

Desktop grid layout:
1366 x 768 - 12 columns with 14px gutter space

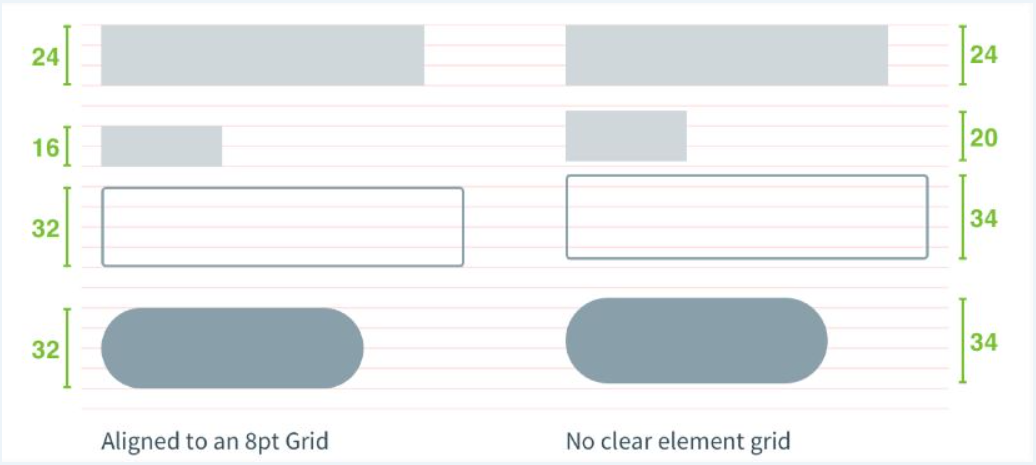

8 Point Grid System:
Our portal employs an efficient 8-point grid system for layout and spacing. This systematic approach ensures consistent and harmonious content placement, contributing to a polished and user-friendly design.
Reasons for the 8-Point Grid System:

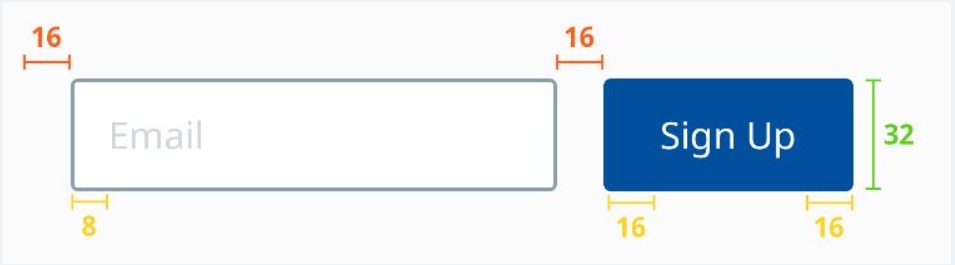

The variety of screen sizes and pixel densities has continued to increase making the work of asset generation more complicated for designers. Utilizing an even number like 8 to size and space elements makes scaling for a wide variety of devices easy and consistent. Smaller components, such as iconography and typography, can align to a 4dp grid.
Consistency: The 8-point grid system provides a standardized and consistent framework for layout and spacing, ensuring a uniform visual identity across the portal.
Efficiency: It simplifies the design and development process by offering predefined increments, making it easier to align elements and create balanced compositions.
Responsive Design: The 8-point grid system is well-suited for responsive design, allowing content to adapt gracefully to various screen sizes and resolutions.
Accessibility: By adhering to consistent spacing, the portal enhances accessibility and readability, improving the overall user experience.
Maintenance: The system simplifies design maintenance and updates, as adjustments can be made systematically, minimizing the risk of design inconsistencies.
In summary, the 8-point grid system is chosen for its ability to maintain design consistency, streamline development, support responsiveness, and enhance user accessibility within the Sunbird-Ed portal.
